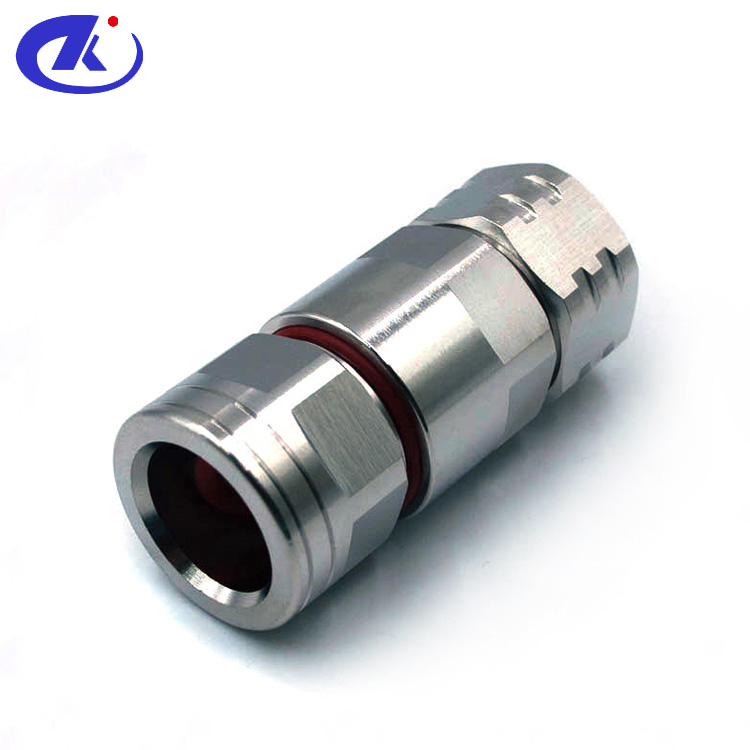

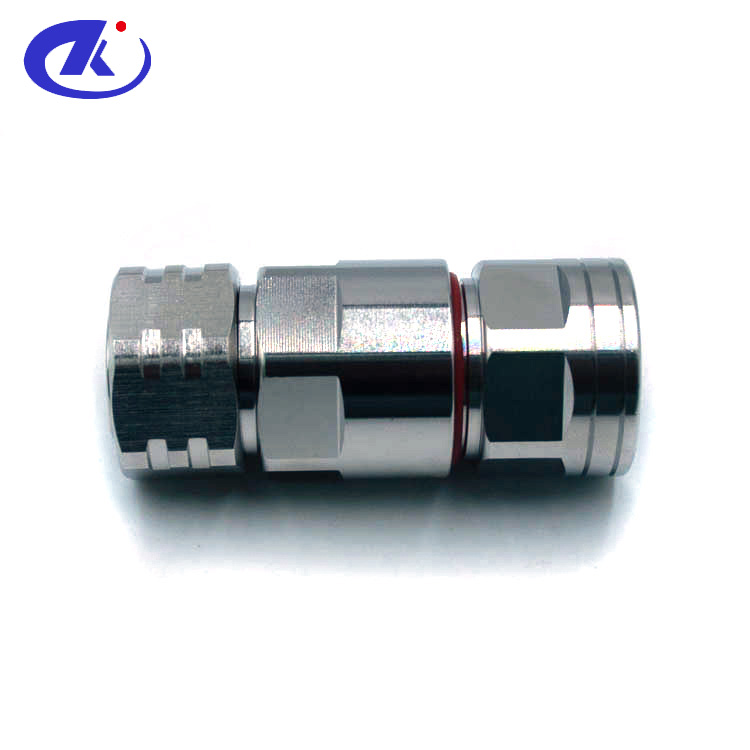

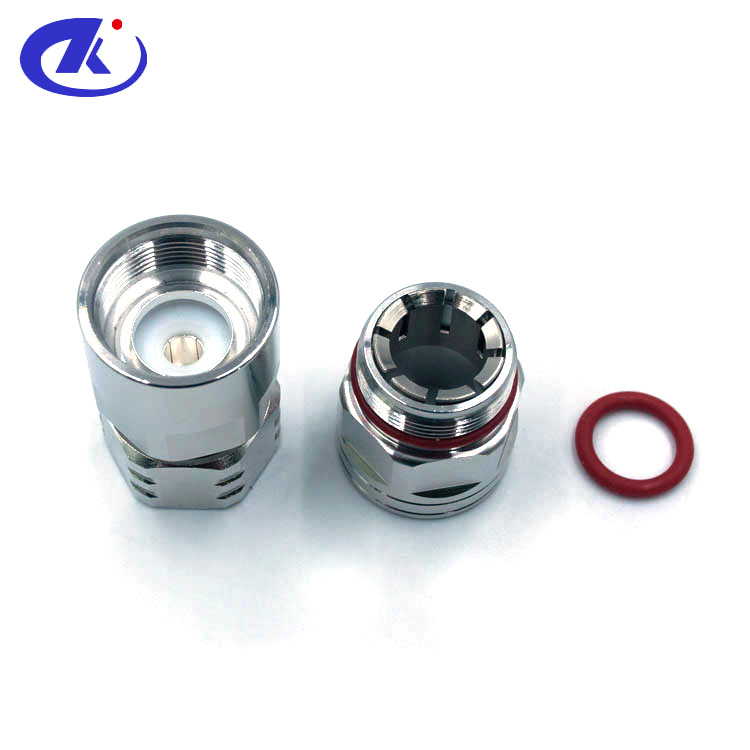

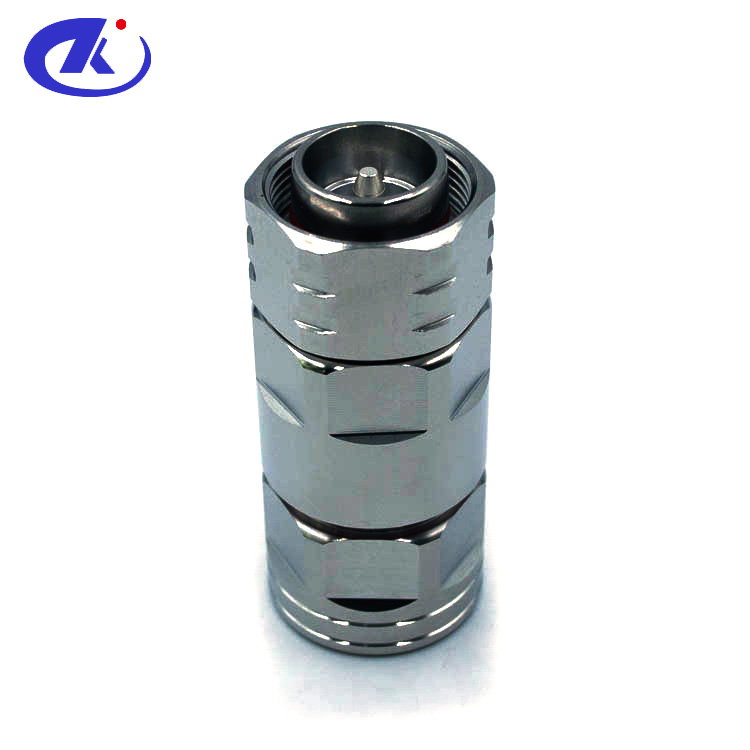

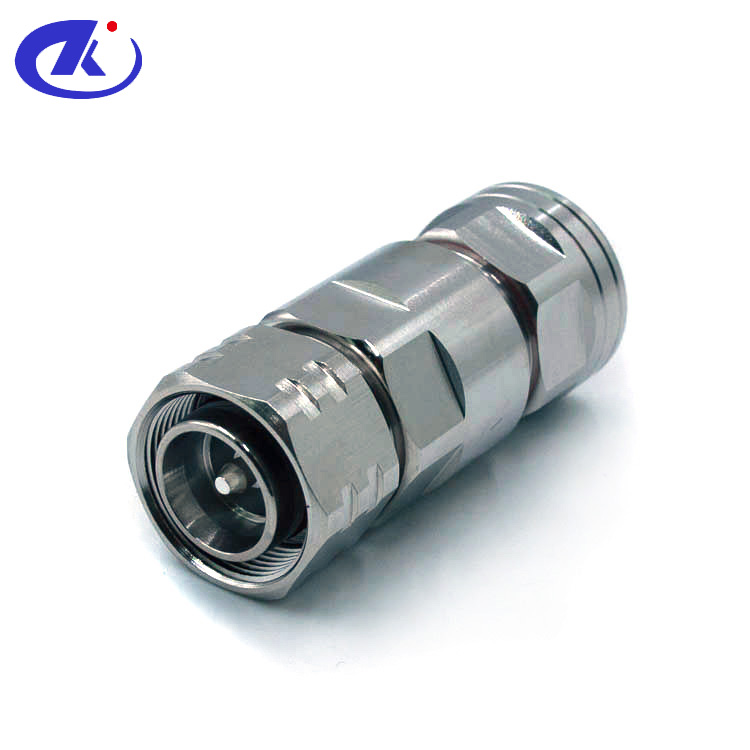

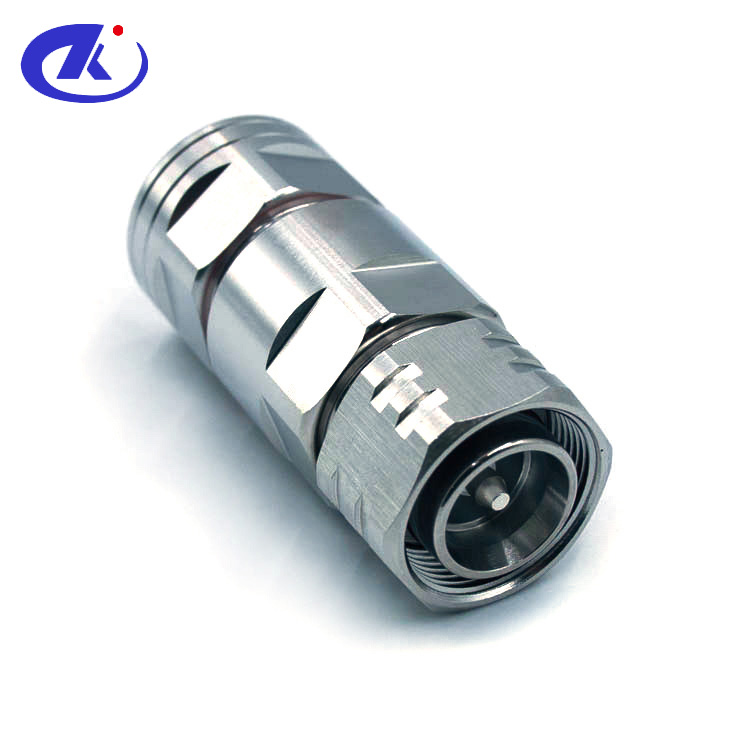

4.3/10 Male Straight Connector Clamp For 1/2” Feeder Cable Screw Type (4.3/10-J1/2)

4.3/10 Male Straight Connector Clamp For 1/2” Feeder Cable Screw Type  (4.3/10-J1/2)

SPECIFICATION



4.3/10 Male Straight Connector Clamp For 1/2” Feeder Cable Screw Type

(4.3/10-J1/2)

Interface

According to:IEC 61169-54

Electrical Performance

Characteristic Impedance:50 ohm

Frequency Range:DC-6GHz

VSWR:≤1.1(0-3G);≤1.2(3-6G)

PIM3:≤-165dBc

Dielectric Withstanding Voltage:≥2500V RMS,50Hz,at sea level

Dielectric Resistance:≥5000MΩ

Contact Resistance:Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ

Durability:Mating cycles ≥500

Material and plating

Body:Brass, Tri-Alloy plating

Insulator:PTFE, NATURAL

Contact PIN:Phosphor bronze,Ag plating





Environmental

Temperature Range:-40℃~+85℃

Watertightness(1m water depth, 24hours):IP68

RoHS:Full RoHS-Compliance

All products appearance, technical performance and electroplating can be customized according to customer requirements.
