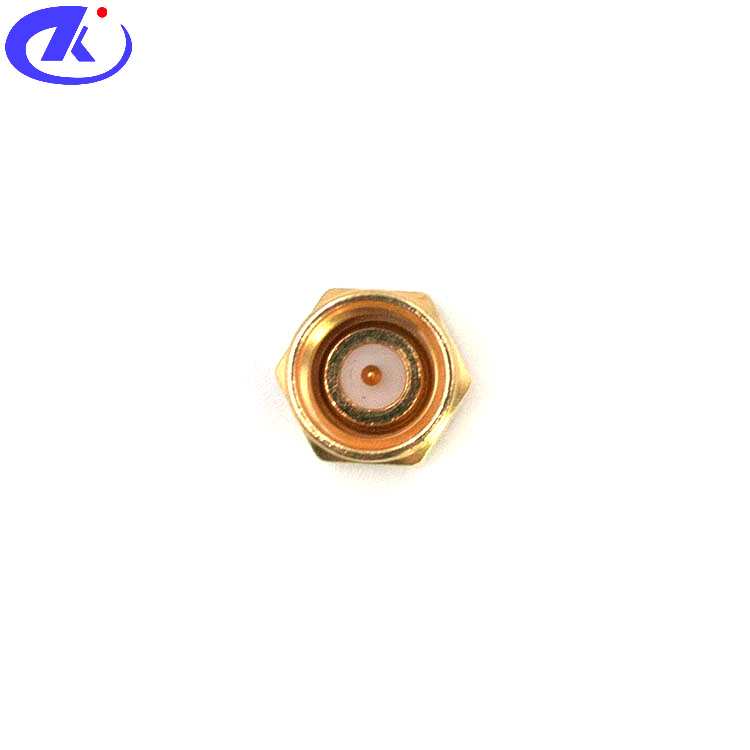

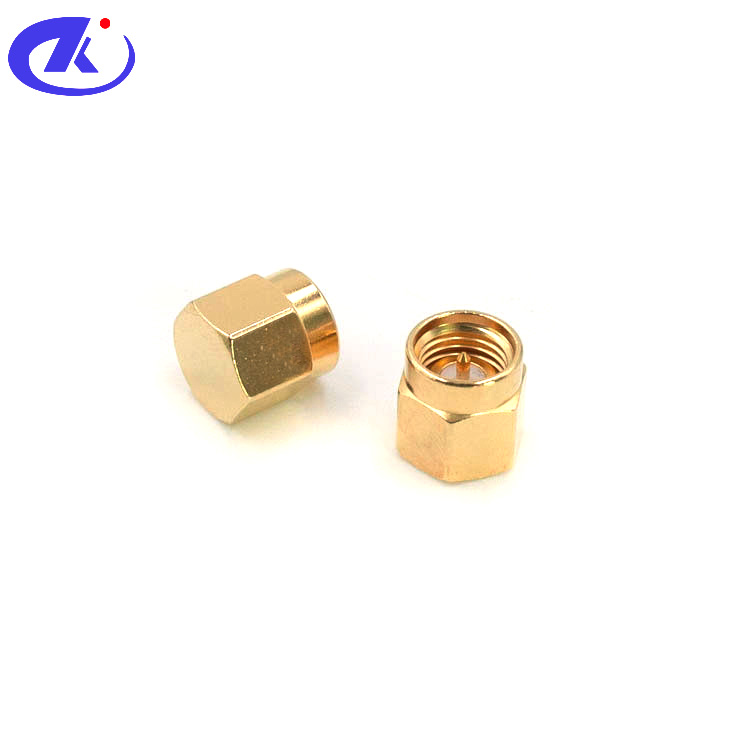

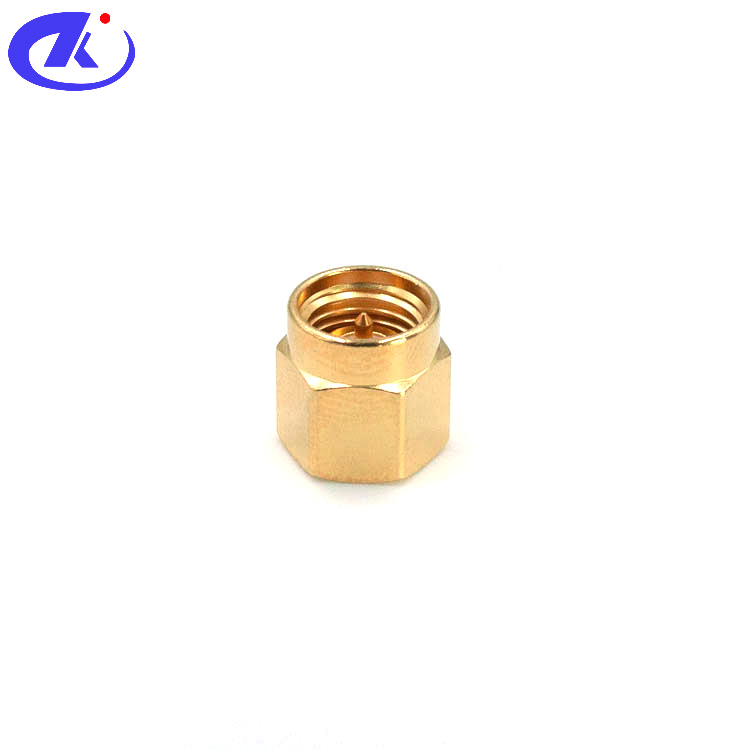

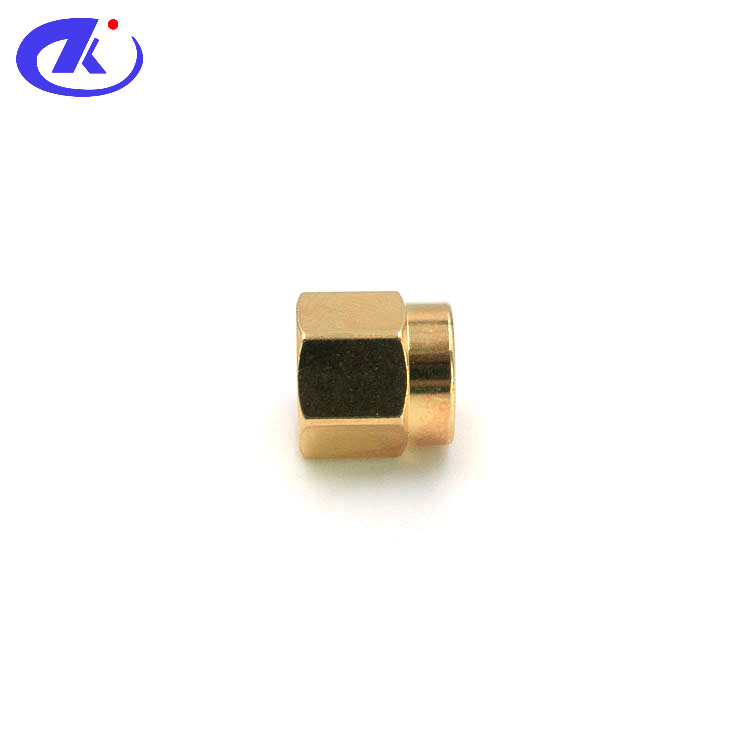

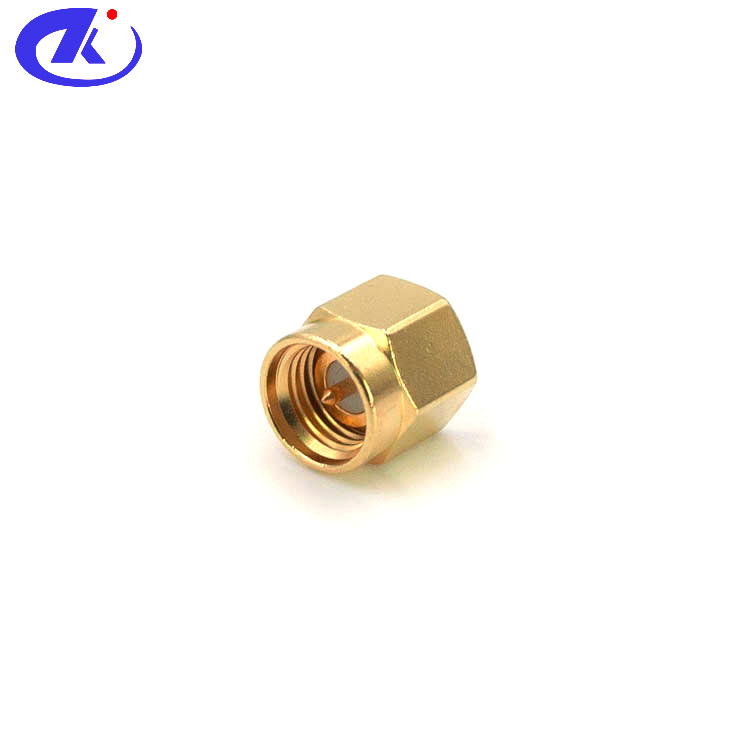

50ohm RF coaxial Connector SMA male termination 2W (SMA-J(FZ)-4)

SPECIFICATION

50ohm RF coaxial Connector SMA male termination 2W

(SMA-J(FZ)-4)

Interface

According to：IEC 60169-15

Electrical Performance

Characteristic Impedance：50 ohm

Frequency Range：DC-18GHz

VSWR：≤1.30

Dielectric Withstanding Voltage：≥1000V RMS,50Hz,at sea level

Dielectric Resistance：≥5000MΩ

Contact Resistance：Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ

Durability：Mating cycles ≥500

Material and plating

Body：Brass, Au plating

Insulator：PTFE, NATURAL

Contact PIN：Brass,Au plating

Environmental

Temperature Range：-40℃～+85℃

Waterproof：P67

RoHS：Full RoHS-Compliance

All products appearance, technical performance and electroplating can be customized according to customer requirements.
