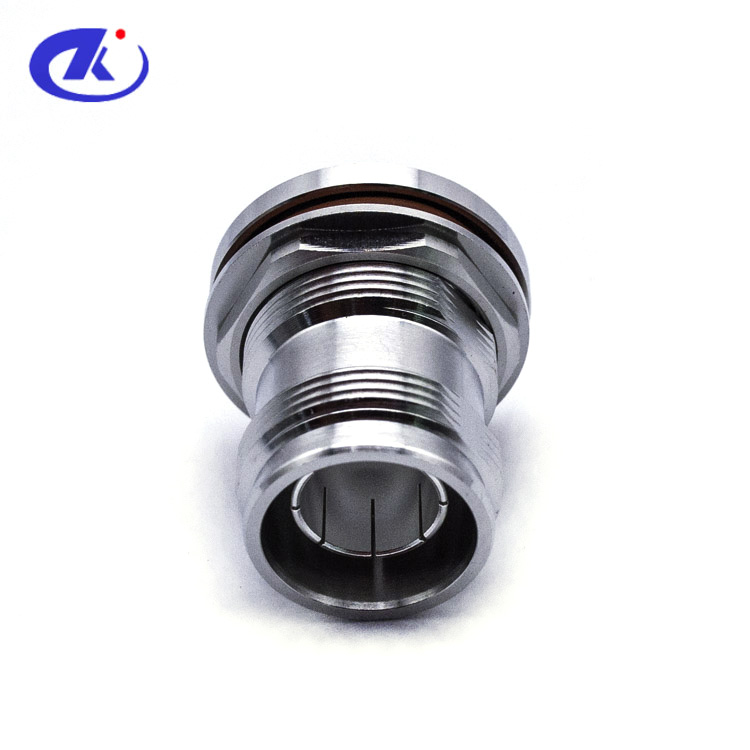

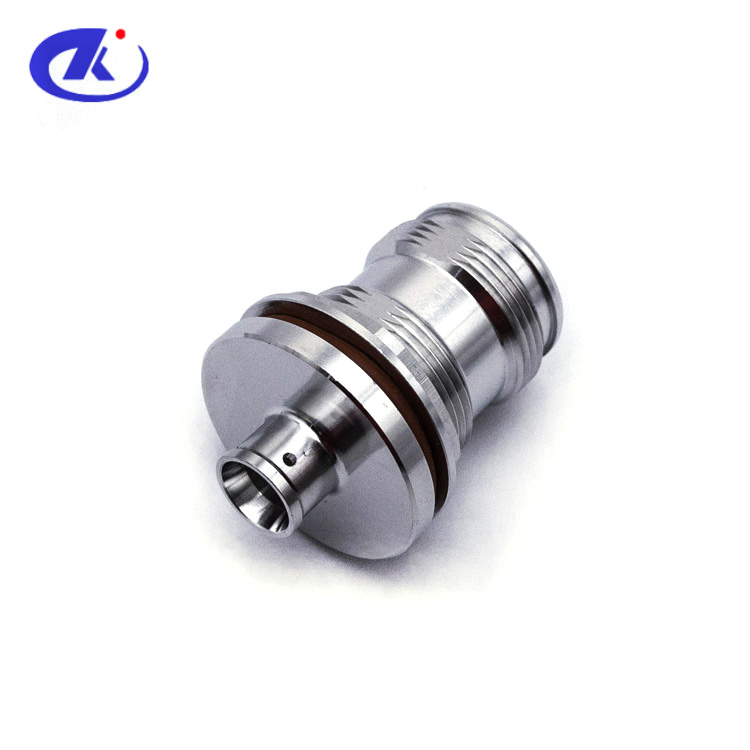

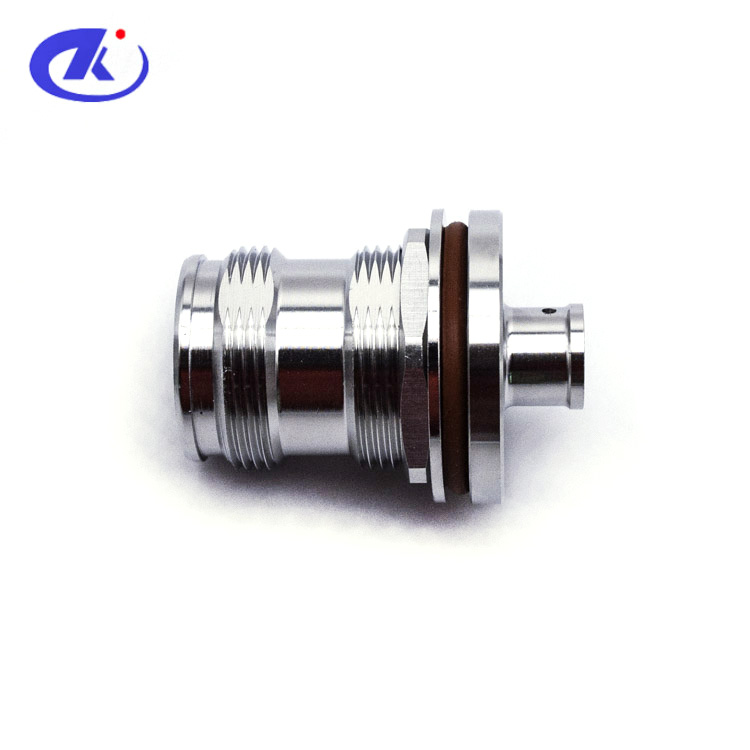

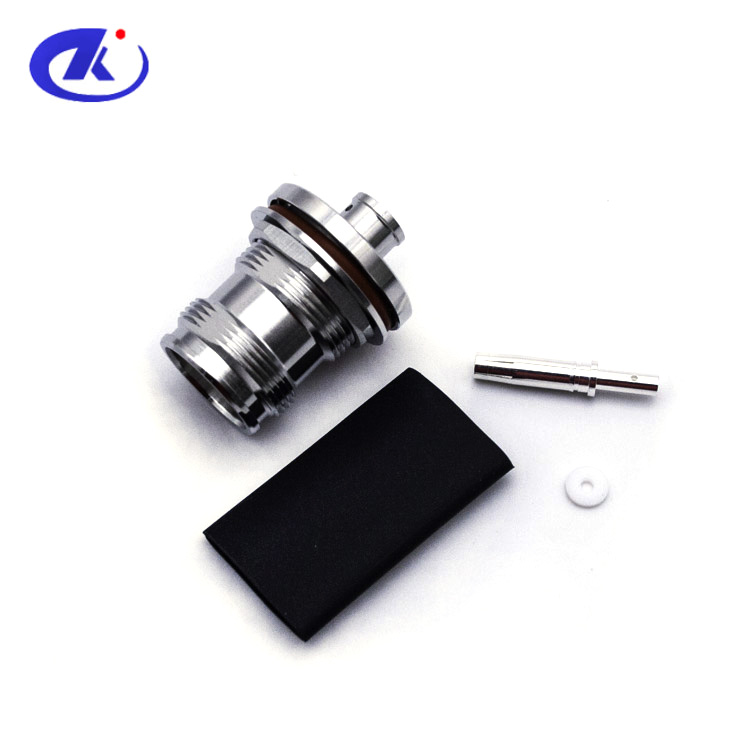

4.3/10 Female Connector For 1/4 Superlfex Cable Soldering (4.3/10-H-K1/4S(T)-1)

4.3/10 Female Connector For 1/4 Superlfex Cable Soldering  (4.3/10-H-K1/4S(T)-1)

SPECIFICATION



4.3/10 Female Connector For 1/4 Superlfex Cable Soldering

(4.3/10-H-K1/4S(T)-1)







Interface

According to:IEC 61169-54

Electrical Performance

Characteristic Impedance:50 ohm

Frequency Range:DC-6GHz

VSWR:≤1.1(DC-3GHz) ≤1.1(3-6GHz)

PIM3:≤-160dBc

Dielectric Withstanding Voltage:≥2500V RMS,50Hz,at sea level

Dielectric Resistance:≥5000MΩ

Contact Resistance:Center Contact ≤1.0mΩ Outer Contact ≤1.0mΩ

Durability:Mating cycles ≥500

Material and plating

Body:Brass, Tri-alloy plating

Insulator:PTFE, NATURAL

Contact PIN:Phosphor bronze,Ag plating





Environmental

Temperature Range:-40℃~+85℃

Watertightness(1m water depth, 24hours):IP68

RoHS:Full RoHS-Compliance

All products appearance, technical performance and electroplating can be customized according to customer requirements.
